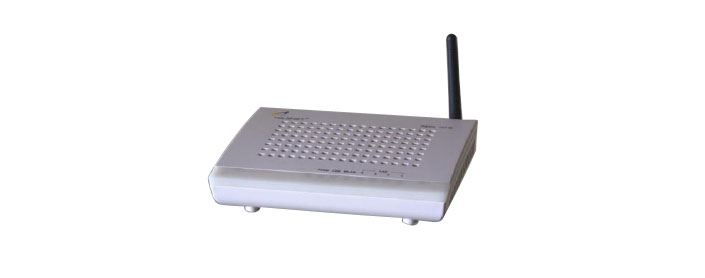

WIRELESS ADSL 2 + ROUTER (Model: TNDSL 2220)

WIRELESS ADSL 2 + ROUTER


Features:

  • One 10/100 Ethernet port
  • Friendly GUI for web configuration
  • Support single session IP sec and PPTP pass through for virtual private network (VPN)
  • Several popular games are already pre-configured. Just enable the game and the port setting are automatically configured
  • Configure as a DHCP server on your network
  • Compatible with virtually all standards internet application
  • Industry standard and interpretable DSL interface
  • Address filtering, DMZ hosting, and much more
  • Simple web base status page display a snapshot of your systems configuration and link to the configuration pages
  • Downloadable flash software upgrades
  • Support for up to 8 permanent virtual circuits (PVC)
  • Support for up to 8 PPPoE sessions
  • High-speed data transfer rates of up to 54 Mbps
  • Compatible with IEEE 802.11b, IEEE 802.11g, 2.4GHz compliment equipment

Standard:

  • ANSI T1.413 issue 2
  • ITU G.992.1 (G.dmt)
  • ITU G.992.2 (G.dmt)
  • ITU G.992.3 (G.dmt)
  • ITU G.992.2 (G.dmt)
  • IEEE 802.11b_IEEE802.11g

Specification Signal:

  • ATM T1.413 issue2
  • Strict ATM communicating mode

Data Speed:

  • Downstream data rates up to ADSL 8Mbps; ADSL+2 24Mbps
  • Upstream data rates up to 1024kbps
  • G.lite; downstream data rates up to 1.5Mbps
  • G.lite up streams data rates up to 51kbps
WIRELESS SPECIFICATION
 Network Standard IEEE 802.11b
  IEEE 802.11g
 Frequency Range 2.40G-2.4835G
 Modulation 802.11b:
DBPSK.DQPSK. CCK
802.11g: BPSK.QPSK.16QAM.64QAM
 RF Power (Max) 20dBm
 AP Capacity Access User Quantity 50~80Pcs/AP (Proposal)
Channels 11 (US and Canada) 13 (Europe and China) 14 (Japan)
Auto-sensing Data Rate 1Mbps .2Mbps .5.5Mbps .11Mbps for 802.11.b
6 Mbps.9 Mbps .12 Mbps.18 Mbps .24 Mbps.48 Mbps .54 Mbps
 Payload Rate 1Mbps DBPSK @ 0.81Mbps
2Mbps DQPSK @ 1.58Mbps
5.5Mbps CCK @ 4.07Mbps
6 Mbps BPSK@4.64Mbps
9 Mbps BPSK@6.55Mbps
11 Mbps CCK @ 7.18Mbps
12 Mbps BPSK @8.31 Mbps
18 Mbps QPSK@11.5 Mbps
24 Mbps 6QAM@14.18 Mbps
36 Mbps 16QAM@18.31 Mbps
48 Mbps 64QAM@23.25 Mbps
54 Mbps 64QAM @26.12 Mbps
 Security 64-bit/128-bit WEP Encryption, WPA (Wi-Fi Protected Access)
 User Isolation MAC Level
 MAC Filter Eth Interface MAC Filter Support
Vacancy MAC Filter Support
 Authentication DHCP Client & Static IP Support
802.1X and Radius Client Support
DHCP Server Support
 Mode (LAN Port) Router, Bridge, PPPoE Client
 LAN Port Type 10/100Mb Auto-Sensing IEEE802.3
 Radio Cover
 Rage ( m)		 Outdoor 120~400
Indoor 35~100
 Antenna Type Internal Diversity with Connector Internal Diversity with Connector
 Management Web based ,Telnet, TFTP, Set IP Session(arp/ping)
