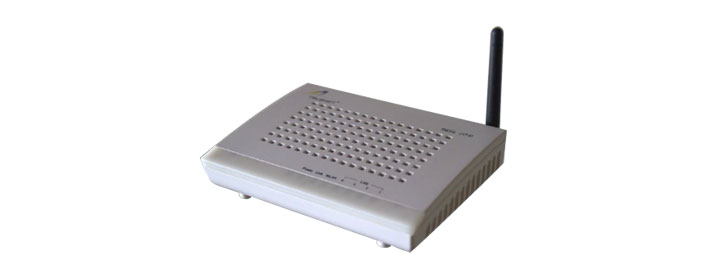

WIRELESS FOUR PORT ADSL2+ ROUTER (Model: TNDSL 2240)
Telenet TNDSL 2240 ADSL2 + router is a high quality equipment which can be used as a ADSL MODEM, a wireless AP and a router. Choose the slap-up chipset TNETD7300A provided by the global famous ADSL CMOS corporation TI, which supports kinds of network protocols, steady runs, and is compatible with various DSLAM, which is preferred by the individual users, the SOHO, and the small enterprise to access the internet.
Features:
- Four 10/100 Ethernet port with ONE USB(optional)
- Friendly GUI for web configuration
- Support Single-Session IPSec and PPTP Pass-Through for Virtual Private Network (VPN)
- Several popular games are already pre-configured. Just enable the game and the port settings are automatically configured.
- Configurable as a DHCP Server on Your Network
- Compatible with virtually all standard Internet applications
- Industry standard and interoperable DSL interface
- Address Filtering, DMZ Hosting, and Much More
- Simple web based status displays a snapshot of your system configuration and links to the configuration pages
- Downloadable flash software upgrades
- Support for up to 8 Permanent Virtual Circuits (PVC)
- Support for up to 8 PPPOE sessions
- High-Speed Data Transfer Rates of up to 54Mbps
- Compatible with IEEE 802.11b, IEEE 802.11g, 2.4GHz Compliant Equipment
| WIRELESS SPECIFICATION | ||
| Network Standard | IEEE 802.11b | |
| IEEE 802.11g | ||
| Frequency Range | 2.40G-2.4835G | |
| Modulation | 802.11b: | |
| DBPSK.DQPSK. CCK | ||
| 802.11g: BPSK.QPSK.16QAM.64QAM | ||
| RF Power (Max) | 20dBm | |
| AP Capacity | Access User Quantity | 50~80Pcs/AP (Proposal) |
| Channels | 11 (US and Canada) 13 (Europe and China) 14 (Japan) | |
| Auto-sensing Data Rate | 1Mbps .2Mbps .5.5Mbps .11Mbps for 802.11.b | |
| 6 Mbps.9 Mbps .12 Mbps.18 Mbps .24 Mbps.48 Mbps .54 Mbps | ||
| Payload Rate | 1Mbps | DBPSK @ 0.81Mbps |
| 2Mbps | DQPSK @ 1.58Mbps | |
| 5.5Mbps | CCK @ 4.07Mbps | |
| 6 Mbps | BPSK@4.64Mbps | |
| 9 Mbps | BPSK@6.55Mbps | |
| 11 Mbps | CCK @ 7.18Mbps | |
| 12 Mbps | BPSK @8.31 Mbps | |
| 18 Mbps | QPSK@11.5 Mbps | |
| 24 Mbps | 6QAM@14.18 Mbps | |
| 36 Mbps | 16QAM@18.31 Mbps | |
| 48 Mbps | 64QAM@23.25 Mbps | |
| 54 Mbps | 64QAM @26.12 Mbps | |
| Security | 64-bit/128-bit WEP Encryption, WPA (Wi-Fi Protected Access) | |
| User Isolation | MAC Level | |
| MAC Filter | Eth Interface MAC Filter | Support |
| Vacancy MAC Filter | Support | |
| Authentication | DHCP Client & Static IP | Support |
| 802.1X and Radius Client | Support | |
| DHCP Server | Support | |
| Mode (LAN Port) | Router, Bridge, PPPoE Client | |
| LAN Port Type | 10/100Mb Auto-Sensing IEEE802.3 | |
| Radio Cover Rage ( m) |
Outdoor | 120~400 |
| Indoor | 35~100 | |
| Antenna Type | Internal Diversity with Connector | Internal Diversity with Connector |
| Management | Web based ,Telnet, TFTP, Set IP Session(arp/ping) | |
