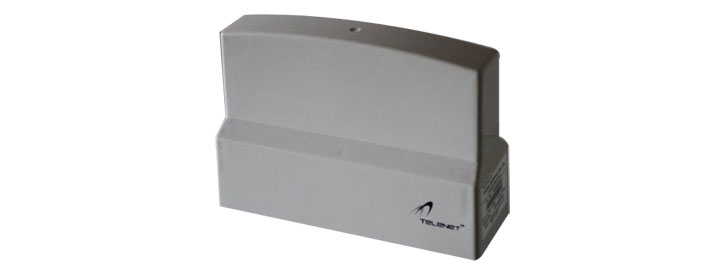

5 PORT UNMANAGED EDGE SWITCH WITH POE (Model: ES- 8005 - PE)

5 PORT UNMANAGED EDGE SWITCH WITH POE


Telenet's 5-port 10/100Mbps Unmanaged Edge Switch is the latest generation of fast Ethernet switching technology. Five 10/100Base-TX auto sensing, auto MDI/MDIX ports eases the selection of cable type for devices connectivity and provide a completely flexible high-performance non-blocking full wire speed solution. This switch provides a range of powerful features, delivering reliability and consistent performance for your network traffic. The switch supports standard IEEE 802.3x Flow Control standard which eliminate packet loss in heavy traffic conditions

The Switch uses store-and-forward switching to ensure maximum data integrity. The 10/100 Mbps ports support auto-sensing and auto-negotiation at network speeds. All ports support auto MDI/MDI-X feature, allowing you to connect to workstations, servers, or other switches from any port without the need to change your usual straight-through to twisted-pair cables.

The feature of Port Isolation is implemented in this Unit where in the Ethernet Data of the Uplink Port can be transferred to any of the Downlink ports but the individual Downlink ports cannot communicate with each other. This feature is implemented using Port based VLAN.


Power over Ethernet Feature:

Out of the 5 ports, the 5th port is configured as Uplink Port (PoE-Injector = Data + Power OUT) and remaining ports act as Downlink Ports (PoE-PD = Data + Power IN)


Technical Specifications
Ethernet Connectors


RJ45 Jacks (5 Ports) 10/100Base-TX with Auto-MDIX
Uplink : 1-ports PoE Injector (Data + Power OUT)
Downlink : 4-ports PoE (Data + Power IN)
PoE IEEE802.3af Standard
Not Compliant.
Standards


IEEE Std. 802.3 10BASE-T 10Mbps, Half/Full Duplex;
IEEE Std. 802.3u 100BASE-TX, 10/100Mbps, Half/Full Duplex
IEEE Std. 802.3x Flow control and Back-pressure.
Protocols
CSMA/CD
Technology
Store and Forward switching architecture
MAC Address
1K MAC address
Network Cable
2-pair UTP/STP Cat 5 cable
LEDs


Link/Activity per Ethernet port
Power: On/Off for Switch
Power: On/Off for PoE Injector
Power Over Ethernet Injector: Power Supply (IN) for Unmanaged Edge Switch
Power over Ethernet 18V @ 30W on Spare Pair (to supply power to the Unmanaged Edge switch as well as a compatible PoE device (e.g. CPE)).
No. of Ethernet Ports that can Power ON the Unmanaged Edge Switch
Anyone/All of the seven Downlink Ports

Power Over Ethernet Injector: Power OUT to external compatible PoE device

Power over Ethernet Injector on Spare Pair of Uplink Port.
Voltage : 8V-18V
Max Power : 5W
No. of Ethernet Devices that can be powered
Single

CAT-5 Cable Data Lines
Pair 1: Pins 1/2 , Pair 2: Pins3/6
CAT-5 Cable Power Lines
+ VDC: Pins 4/5 , -VDC: Pins 7/8
Power consumption

5 Watt (Edge Switch)
5 Watt (PoE Injector)
Operating Temperature
0° to 40°C
Storage environment
0° to 75°C
Operating Humidity
20% to 90% (non-condensing)
Environment Std (IP)

Dust Protected , Protected from Spray Water up to 60 Degree from Vertical
