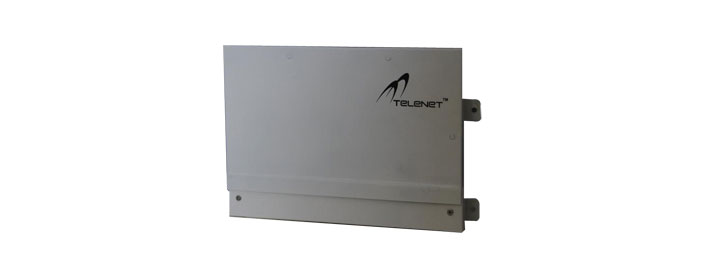

8 PORT UNMANAGED EDGE SWITCH WITH POE (Model: ES- 8008- PE)

8 PORT UNMANAGED EDGE SWITCH WITH POE


Telenet's 8-port 10/100Mbps Unmanaged Edge Switch is the latest generation of fast Ethernet switching technology. Eight 10/100Base-TX auto sensing, auto MDI/MDIX ports eases the selection of cable type for devices connectivity and provide a completely flexible high-performance non-blocking full wire speed solution. This switch provides a range of powerful features, delivering reliability and consistent performance for your network traffic. The switch supports standard IEEE 802.3x Flow Control standard which eliminate packet loss in heavy traffic conditions.

The Switch uses store-and-forward switching to ensure maximum data integrity. The 10/100 Mbps ports support auto-sensing and auto-negotiation at network speeds. All ports support auto MDI/MDI-X feature, allowing you to connect to workstations, servers, or other switches from any port without the need to change your usual straight-through to twisted-pair cables.

The feature of Port Isolation is implemented in this Unit where in the Ethernet Data of the Uplink Port can be transferred to any of the Downlink ports but the individual Downlink ports cannot communicate with each other. This feature is implemented using Port based VLAN.



FEATURES

  • 8-port 10/100Base-TX interface with auto sensing provide a completely flexible high-performance Non-blocking full wire speed solution.
  • The switch supports Max Packet Size of 1536 bytes.
  • The switch supports standard IEEE 802.3x Flow Control to Prevent Packet Loss.
  • Forwarding mechanism – Store and Forward.
  • Port Isolation using Port-based VLAN.
  • Surge Protection on all 8 Ports (Downlink and Uplink ports)
Technical Specifications
Ethernet Connector


RJ45 Jacks (8 Ports) 10/100Base-TX with Auto-MDIX
Uplink : 1-ports PoE Injector (Data + Power OUT)
Downlink : 7-ports PoE PD (Data + Power IN
BATT Connector
Terminal Block
PoE IEEE802.3af Standard
Not Compliant.
Standards


IEEE Std. 802.3 10BASE-T 10Mbps, Half/Full Duplex;
IEEE Std. 802.3u 100BASE-TX, 10/100Mbps, Half/Full
Duplex; IEEE Std. 802.3x Flow control and Back-pressure.
Protocols
CSMA/CD
Technology
Store and Forward switching architecture
MAC Address
1K MAC addres
Network Cable
2-pair UTP/STP Cat 5 cable
LEDs


Link/Activity per Ethernet port
Power: On/Off for Switch
Power: On/Off for PoE Injector
Power Over Ethernet
Injector: Power Supply (IN) for
Unmanaged Edge Switch
Power over Ethernet 18V @ 30W on Spare Pair (to supply power to
the Unmanaged Edge switch as well as a compatible PoE device
(e.g. CPE))
No. of Ethernet Ports that can
Power ON the Unmanaged Edge Switch
Anyone/All of the seven Downlink Ports

BATT option

Input Voltage : 12V -15V
Max Power : 5W
Power Over Ethernet
Power over Ethernet Injector on Spare Pair of Uplink Port.
Injector: Power OUT to external
compatible PoE device
Voltage : 8V-18V
Max Power : 5W
Ethernet Devices that can be powered
Single
CAT-5 Cable Data Lines
Pair 1: Pins 1/2 , Pair 2: Pins3/6
CAT-5 Cable Power Lines
+ VDC: Pins 4/5 , -VDC: Pins 7/8
Power consumption

5 Watt (Edge Switch)
5 Watt (PoE Injector
Operating Temperature
0° to 40°C
Storage environment
0° to 75°C
Operating Humidity
20% to 90% (non-condensing)
Dimensions

Environment Std (IP)
Dust Protected , Protected from Spray Water upto 60 Degree from Vertical
