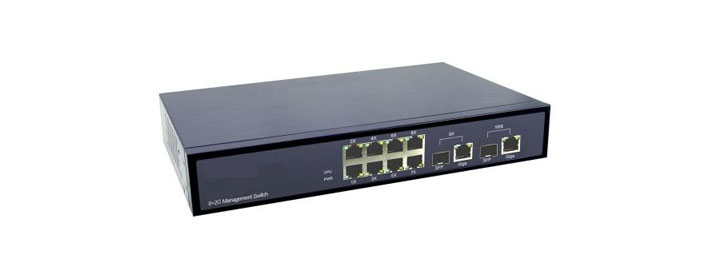

8 PORT - 2SFP COMBO - L2 MANAGED SWITCH (Model: TSW 1010XA)

8 PORT - 2SFP COMBO - L2 MANAGED SWITCH


The Telenet TSW 1010 XA switch is an full L2 management 8-port Fast Ethernet switch, plus 2 Gigabits port (support auto copper/fiber switching), with high performance and competitive price. It's a perfect way to extend your network structure.



FEATURES

  • Compliant with the IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T ,IEEE802.3z 1000Base-X specifications
  • 8 port 10/100Mbps TX Auto-Negotiation and 2 port 10/100/1000Mbps TX and 2 1000Mbps SFP port(shared with 10/100/1000M port)
  • Supports TP interface Auto MDIX function for auto TX/RX swap
  • Support up to 8K MAC address
  • Up to 1M bits packet buffer
  • Supports Store & Forward architecture and performs forwarding and filtering
  • Supports to handle up to 1522 bytes packet
  • Supports 8 groups Port-Based VLAN and 512 groups 802.1q tag VLAN
  • Supports rate control(64Kbps-80Mbps)
  • Supports port mirror
  • Supports IEEE802.1D Spanning Tree and IEEE802.1w RSTP protocol filter
  • Supports MAC address and binding(up to 400 rules)
  • Supports IGMP snooping
  • Supports port trunking(up to 12 groups and 8 ports in each group)
  • Supports SNMP V1/V2 ,RMON MIB(group 1,2,3,9)
  • Supports access switch through Web/Telnet/Console
  • Supports firmware upgrade through Web/Console
  • Build-in power

Technical Specifications
Standards

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX，IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-X
Access Method
CSMA/CD
Network Media

UTP CAT3 or up for copper port ,Single-mode or Multi-mode fiber(with SFP connect) for fiber port
Transmission Method
Store and Forward
MAC Address
8K
Built-in Buffer
1M bits
Data Transfer Rate

10/100Mbps (Half-duplex), 20/200/2000Mbps (Full-duplex for copper port) 2000Mbps only for fiber port
LED Indicators
Power, Link/Activity
Dimension
280mm(L) x 173mm(W) x 44mm(H)
Weight
4000g
Temperature
0° to 50° C (operating), -20° to 70° C (storage)
Humidity

5% to 90 % non-condensing (operating), 5% to 90% non-condensing (storage)
Certifications
FCC Part 15 ark Class A, CE M
Input
12V DC
