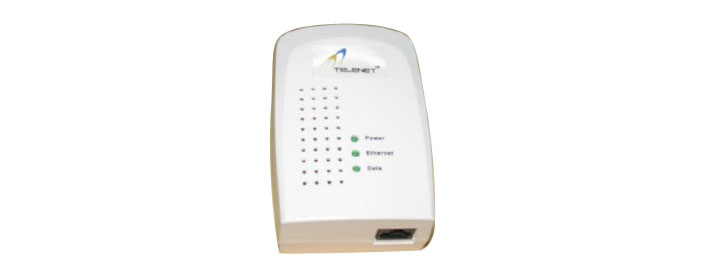

HOME PLUG AV ETHERNET ADAPTER
Features:
- Eco-friendly response saves power consumption by up to 60% in stand by mode.
- Reliable alternative to WI-FI, elements problem created by thick walls & blind spots.
- Transform power line into home network of multiple computers without messes cabling.
- High-speed 200Mbps to streams content on HD IPTV, IP camera and game controls.
- “Simple connects” security feature to pair multiple home-plugs at one touch of a button.
Specifications
Standards
Home plug AV
IEEE 802.3 10/100 auto MDI/MDIX
IEEE 802.3 10/100 auto MDI/MDIX
Protocols
TDMA & CSMA/CA
Range
200m over power line
Modulations
OFDM symbol modulation
DQPSK,DBPSK,ROBO carrier modulation
DQPSK,DBPSK,ROBO carrier modulation
LED inductors
1x power
1x power line – link /activity
1x Eth – link / activity
1x power line – link /activity
1x Eth – link / activity
Security
128 bits AES encryption
External interface
Push button for simple connect
Ethernet LAN port
Reset button
Ethernet LAN port
Reset button
Environment
Operating: 0* C to 40*C
Storage : -25*C to 70*C
Environment : 30% to 80% humidity ( non-condensing )
Storage : -25*C to 70*C
Environment : 30% to 80% humidity ( non-condensing )
Physical dimension
Weight : 190g
Dimension : 90(H) x 46 (W) x 75 (D) mm
Dimension : 90(H) x 46 (W) x 75 (D) mm
Power consumption
4.0W
QABA
1.6W in energy saving mode
QABA
1.6W in energy saving mode
Operating systems
O/S independent
Configuration utility requirement : 98SE / ME / 2000 / XP /
Vista
Configuration utility requirement : 98SE / ME / 2000 / XP /
Vista
Package includes
1x HL110E
1X Rj 45
1x recourse CD
1x easy start guide
1X Rj 45
1x recourse CD
1x easy start guide
