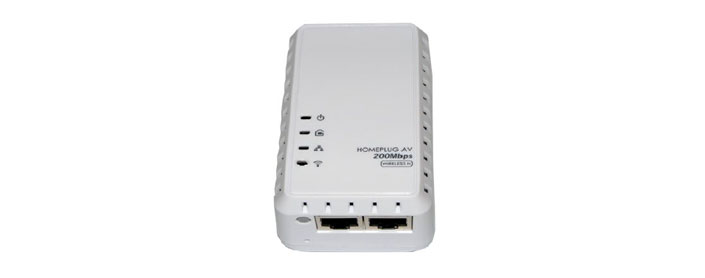

HOME PLUG AV 2- PORT WIRELESS - N EXTENDER

HOMEPLUG AV 2- PORT WIRELESS - N EXTENDER


Features:

  • Extend wireless network in to any spot at home 300Mbps
  • Turn any power outlet into a network connection
  • Automated security with “simple connect” button
  • Wireless “on/off” button for convenience and ease of use
  • Double Ethernet ports for direct connection to Ethernet-ready device
  • Simple plug & play, no software or installation required
  • No new wires, no drilling, no hasslel

Specifications
Standards


Powerline: Homeplug AV /
Wireless : IEEE 802.11b/g/n
Ethernet : IEEE 802.3,AUTO MDI / MDIX
Protocols

Powerline: CSMA/ CA over Powerline in your home
Wireless: CSMA/ CA,EDCA
Modulation

Powerline : OFDM 1024/256/64/16/8 QAM,QPSK,BPSK,ROBO
Wireless: CCK,BPSK,DQPSK,QPSK,QAM
Data transfer rate

Powerline: up to 200Mbps over Powerline
Wireless: up to 300Mbps via wireless
Range

Powerline: up to 200m over Powerline
 Wireless: up to 300m via wireless
Security

Powerline : 128-bit AES encryption ( enabled with simple connect button )
Wireless: WEP,WPA,WPA2
Hardware

Powerline :intellon INT 6400 homeplug AV chipset
Wireless : Wireless N chipset
LED inductors



1x power LED (PWR)
1x power line link / ACT status LED ( PL-LKACT)
1x Ethernet link / ACT status LED ( ETH-LKACT)
1x wireless link/ACT
External connectors



1x electrical power plug
2x RJ 45 for 10/100 Ethernet (AUTO MDI /MDIX )
1x reset button
1x push button for simple connect
Dimension
105mm (H) 58mm (W) 42mm(D)
Power consumption
Norminal 7.0Watt / standby 5Watt / 1.2A
Power supply
AC 100-240V / 50-60 Hz
Temperature

Operating :0* C to40*C, 30% to 80% relative humidity Non-operating : -25*C to 70*C, 30% to 95% relative humidity
Operating systems
Windows 98 / 98SE / ME / 2000 / XP / VISTA ( 32/64-bits)
