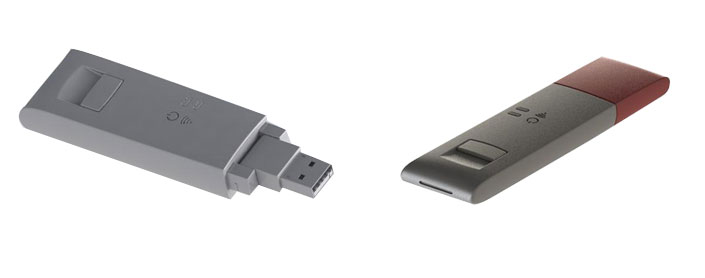

USB DONGLE (Model: TLE-1000)
GENERAL
General Standard
3GPP Release 9
Interface
Universal serial bus 2.0 compatibility (USB 2.0 certified)
SIM
Mini-SIM interface
Operation modes
Time Division Multiplexing TDD
UE Category
Category 4 U
QoS
QCI1-9 supported (both GBR & non-GBR) Network and UE initiated dedicated bearer support
Certification
Compliant to GCF Certification
MANAGEMENT
Management
Remote Management
Security
USIM authentication Physical: Mini-SIM slot
Remote Configuration & Software Upgrade
Downloadable, self-extracting software bundle for SW upgrade and device management
Connection Manager
Windows and Mac OS X versions
CD-less installation from USB stick
Client for OTA software upgrade
Diagnostics utility
Custom operator branding (optional)
CD-less installation from USB stick
Client for OTA software upgrade
Diagnostics utility
Custom operator branding (optional)
RADIO
Number of Radio
TD-LTE Radio
Frequency Range
2300 - 2400 Mhz
Channel Bandwidth
Bandwidth 5MHz/10MHz/15MHz/20MHz Support
RF tranmission power
23 dBm
Receiver Sensitivity
-94 dBm
MIMO capability
1 T x 2 R
ANTENNA
Internal Antenna gain
2 dBi
External Antenna Connector
1 (Optional)
OPERATING SYSTEM
OS Compatibility
Windows XP, Vista and 7
Linux
Mac OS 10. 5 or higher
Linux
Mac OS 10. 5 or higher
POWER
Power Requirements
5V DC at 500mA approx
Power Consumption
2.5 Watts Max
INSTALLATION
Plug & Play Operation
CD-Less installation offering a plug & play experience to users
PHYSICAL
Physical Dimension/ Form factor
USB Dongle with in-built antenna. Compact Form factor, Not larger than current 3G Dongles
Weight
< 50 g
Operating temperature .
(0 to 50 )deg cent
Humidity
5 to 90% Non Condensing
ENVIRONMENT PROTECTION
Compliances
WEEE, EN 60950,CE mark, RoHS Directive 2002/95/EC Other market specific certification upon requests
Shock and Vibration
ETSI300-0110-1.4
Enclosure Characteristics
Plastic
