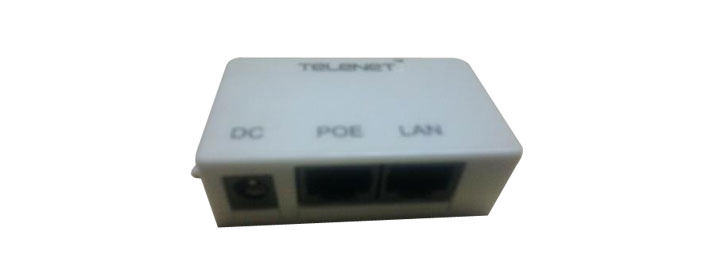

POWER OVER ETHERNET INJECTOR (Model: 12V)
Telenet’s Midspan POE is a Power-over-Ethernet (Poe) power supply which provides DC power for one Poe-equipped device by "Injecting" DC power through the Spare Pair of the CAT5 (10/100Mbps) Ethernet cable
Installation and Management
Plug and Play installation. Our POE device automatically supplies inline power. Local Power LED is present
Electrical Specifications
Ethernet Connectors
RJ45 Jacks (2)
Ethernet Data Rate
10/100Mbps Ethernet
No. of Ethernet Devices that can be powered
Single
Data Lines
Pair 1: Pins 1/2
Pair 2: Pins 3/6
Pair 2: Pins 3/6
CAT-5 Power (Poe) Pin out (Spare Pair)
+ VDC: Pins 4/5
- VDC: Pins 7/8
- VDC: Pins 7/8
Operating Temperature
0° C to +50° C
Max Output Power
12W
Nominal Output Voltage
12V (Typical)
Input
205-255 VAC 50Hz
IEEE 802.3af Compliant
Not Applicable
