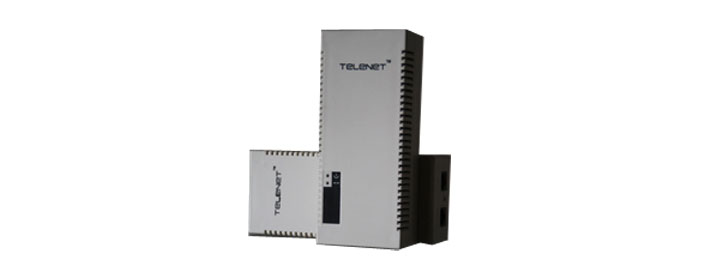

POWER OVER ETHERNET INJECTOR 24V WITH 48V DC INPUT (Model: TPE 124 – D)
Telenet’s Midspan POE is a Power-over-Ethernet (Poe) power supply which provides DC power for one Poe-equipped device by "Injecting" DC power through the Spare Pair of the CAT5 (10/100Mbps) Ethernet cable
Electrical Specifications
Input Voltage
40-60 Vdc
Output Voltage
24V ±5%
Output Current
0.5Amp
Ripple & Noise for entire input range at full load
240mV Peak – Peak
Line & Load Regulation
5%
Operating Temperature
0°C to +50°C
Storage Temperature
-20°C to +70°C
Efficiency
>60%
Protections:
Input
Fuse, Reverse protection. Input under Voltage protection
Output
Output Over load & short circuit protection.
Protections:
Dielectric voltage withstand test Between Shorted Input & Output Terminals
2.0K.V ac RMS for 1 Min
Insulation Resistance between Shorted Input & Output Terminals
5MΩ when tested with 500Vdc Mugger
EMI/EMC
Meets the requirements of EN55022 Standards
Terminations
Input Connector
Terminal Block
Poe injector
Power over Ethernet
24V @ 24W on spare pair
Cat-5 cable data line
Pair1: pin 1/2 pair : pin 3/6
Cat-5 cable power line
- VDC: pin 4/5 , + VDC pin 7/8
Connectors
RJ 45 metallic, 2ports
