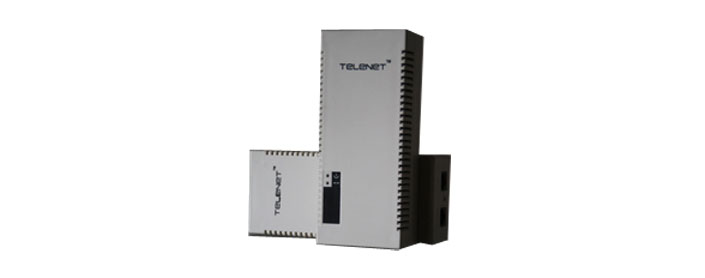

POWER OVER ETHERNET ADAPTER - 48V - 15W (Model: TPE 1015)
Telenet’s Midspan POE is a Power-over-Ethernet (Poe) power supply with integral DC Injector. It provides DC power for one Poe-equipped device by "Injecting" DC power through the CAT5 (10/100Mbps) Ethernet cable. It is compatible with AP’s and other equipment supporting the IEEE standard Poe pin out (Pins 4&5 Power + / Pins 7&8 Power -). Since our POE device is completely self-contained, a separate power supply and injector is not required
Installation And Management
Plug and Play installation. Our POE device automatically detects all POE enabled devices and supplies inline power. Local LED Management display is present.
Application
Application
Wireless LAN Access Points and Bridges
Wireless LAN Wi-Fi Amplifiers and Amplified Antennas
VoIP (Voice over Internet Protocol)
Telephones
IP Surveillance Cameras
Bluetooth® Access Points
Wireless LAN Wi-Fi Amplifiers and Amplified Antennas
VoIP (Voice over Internet Protocol)
Telephones
IP Surveillance Cameras
Bluetooth® Access Points
Electrical Specifications
Ethernet connectors
RJ45 jack (2)
Ethernet data rate
10/100 Mbps Ethernet
No. of Ethernet Devices that can be powered
Single
Data Lines
Cat-5 power(POE) pin out ( spare pare )
Cat-5 power(POE) pin out ( spare pare )
Pair 1 : pin 1/2
Pair 2 : pin 3/6
+VDC : pin 4/5
-VDC : pin 7/8
Pair 2 : pin 3/6
+VDC : pin 4/5
-VDC : pin 7/8
Operating temperature
0* C to +55* C
Max output power
16W
Normal output voltage
44 v to 55 v
Input
110 – 250vac 50hz
IEEE Compliant
Single IEEE 802.3af compliment
