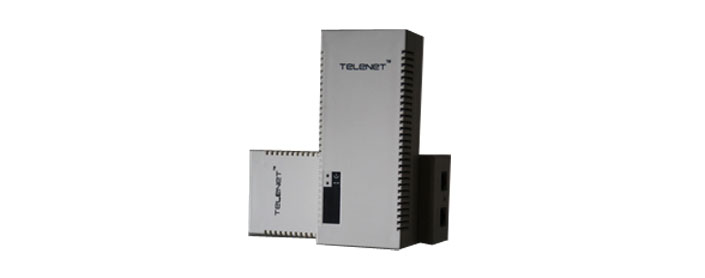

POWER OVER ETHERNET ADAPTER - 60W 4-PAIR HIGH POWER PoE
(Model: TPE 1060)

POWER OVER ETHERNET ADAPTER 60W 4-PAIR HIGH POWER PoE


Telenet’s Midspan POE is a Power-over-Ethernet (PoE) power supply with integral DC Injector. It is a single-port Power-over-Ethernet (PoE) Midspan to feature gigabit switching support and high efficiency four-pair operation compliant with the IEEE 802.3at power-over Ethernet (PoE) power specifications. It provides DC power for one PoE-equipped device by "Injecting" DC power through the CAT5e Ethernet cable.

Telenet’s Midspan PoE can source 15W to 120W of Power:

Telenet’s Midspan PoE can deliver power as per the IEEE802.3af and IEEE802.3at standards. Simultaneously for Power Devices that demand more power than that specified by these standards we have a proprietary range, wherein power can be sourced on 2-pair as well as 4-pairs, also this per port power rating can be increased from 30W up to 240W, thereby considerably increasing the delivered to the Power Device.

Specification
Ethernet Connectors
RJ45 Jacks (2)
Ethernet data rate
10/100/1000Mbps Ethernet
No. of Ethernet Devices that can be powered
Single
Data Lines

Pair 1: Pins 1/2
Pair 2: Pins 3/6
CAT-5 Power (PoE) Pinout



+ VDC: Pins 4/5
- VDC: Pins 7/8
+ VDC: Pins 1/2
- VDC: Pins 3/6
Nominal Output Voltage
(48VDC-57VDC) (Typical: 54V)
Input
110-250 VAC 50Hz OR -48V DC
IEEE Compliant

IEEE802.3af Compliant
IEEE802.3at Type1 and Type2 Compliant.
Protection



Port Overload protection,
Port Inrush and Short-Circuit protection,
Thermal Protection,
Open-Circuit Protection.




Applications for this Power-Over-Ethernet product

  • Wireless LAN Access Points and Bridges
  • Wifi Amplifiers and Amplified Antennas
  • WiMAX
  • VoIP (Voice over Internet Protocol) Telephones
  • IP Surveillance Cameras
  • Bluetooth® Access Points
  • Microwave Radios
