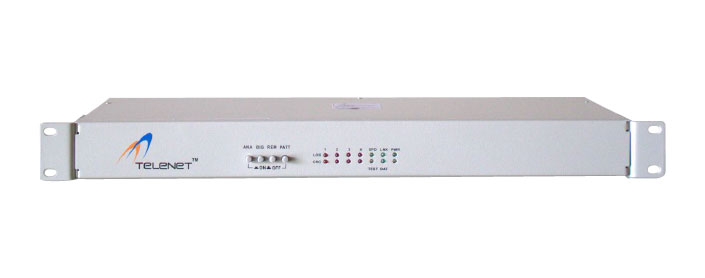

4E1 TO 10/100 BASE - T PROTOCOL CONVERTER (MODEL: TPC 3140)

4E1 TO 10/100 BASE – T PROTOCOL CONVERTER



Telenet’s TPC 3140 is a Network Bridge that can convert 1-4E1 to 10Base-T Ethernet, and vice versa. This protocol converter could support 1-4E1 to Ethernet, which extend the bandwidth to 7.68Mbps. It is widely used in two LAN connecting, remote monitor and video broadcasting.

Features:

  • Fully compatible with IEEE802.3, ITU-T G703, G704 and G823
  • Support 10Base-T, 100Base-TX protocol
  • Support VLAN & IEEE802.1q packets
  • Enable any group of CH1-CH4 E1 channel to transmit the data at will
  • Extend the bandwidth to 7.68Mbps when using 4E1 channels
  • Support auto-inspection of effective E1 channel without interruption of data transfer.
  • Automatically cut off the E1Channel when it has LOS and AIS alarm, and inform the remote end simultaneously
  • Support remote E1 Loop function
  • 75/120 ohm Optional of E1 channel impedance
  • Internal power supply, overall power consumption<3w, AC160V-260V or DC -48V optional

Specification:

E1 Port

  • Bit rate: 2.048Mb
  • Line code: HDB3
  • Standard: in accordance with ITU-T G.703, G.704
  • Connector: BNC connector, line impedance 75ohm
  • Number of E1: 4
  • Jitter Performance: compatible with G.742 and G.82


Ethernet Port

  • Data Rate: 10/100Mbps
  • Standard: Compatible with IEEE802.3
  • Connector: RJ45
  • Number of Ports:1 port
  • Auto-negotiation with half/full duplex
  • Dimension: 440mm (W) *160mm (D)*44mm (H)
