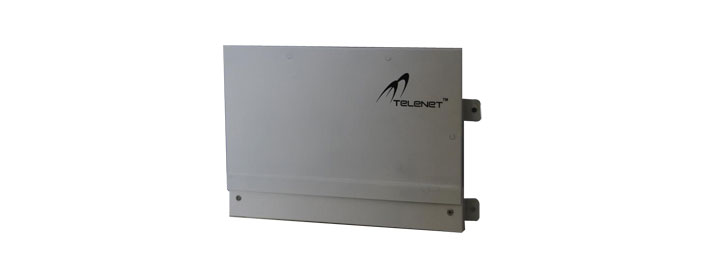

8 PORT MANAGED EDGE SWITCH WITH PoE (Model: ES- 1008-PE)

Telenet 8-port 10/100 Mbps managed edge switch is the latest generation of the fast Ethernet switching technology. The switch store and forwarding switching to ensure maximum data integrity the switch support auto sensing auto-negotiations and IEEE 802.3x flow control standard which eliminate packet loss in heavy traffic conditions. All port also support auto MDI/MDI-X feature eases the selection of cable type devices connectivity and provide a completely flexible high-performance non-blocking full wire speed solution the management features include port base, tagged base VLAN,s per port bandwidth restriction via rate limiting and port security.

Out of this port, the last port is configure as uplink port and remaining port are downlink ports the feature of port isolation is implemented in this unit is where Ethernet data of the uplink port can be transferred to any of the downlink port but individual downlink port cannot communicate with each other. Additional feature of the rate limit and broadcast storm also are present

With its unit-in remote management capability, the switch offers an easy-to-use platform-independent management of monitoring. For text-based management, the switch can also be accessed via telnet and console port for configuration and monitoring.

Feature:

• 8-port 10/100 base-TX interface with auto sensing provide the completely flexible high-performance non-blocking full wire speed solution.
• Support auto-negotiation for speed and duplex mode.
• Support auto-MDIX for each port
• The switch supports max packet size of 1536 bytes
• The switch support standard IEEE 803.2X flow control to prevent packet loss.
• Forwarding mechanism – store and foreword
• Port isolation using port-base VLAN
• Port security
• IEEE 802.1Q tagging VLAN
• Support bandwidth control – form 128k up to full (100 mbps)
• Support broadcast storm control
• Management via telnet, web management, and console port
• DHCP option 82
• IGMP for multicasting
