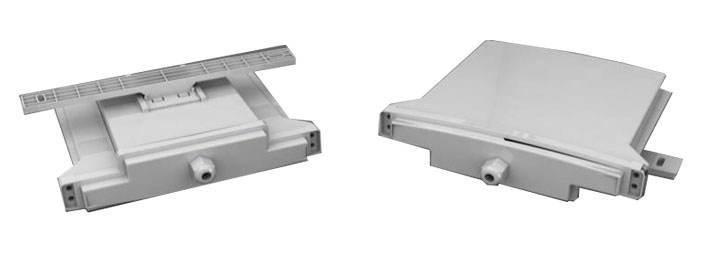

OUTDOOR CPE (Model: TLE 5010-PE)
GENERAL
General Standard
3GPP Release 9 Cat 4
Ethernet Interface
One (optional – Four) auto MDX, auto sensing 10/100 Mbps, RJ45 port
Operation modes
Time Division Duplex TDD
QoS
QCI - Throughput expectations, Packet error loss, delay, and variation in delay (Jitter.)
SYSTEM
CPU
300 Mhz or better
Flash / SDRAM
4/16 MB
NETWORKING
Networking
Built-in DHCP client and server ,Configurable DHCP option 60, Static route, Firewall, NAT/PAT, DMZ, DHCP Client/Server/Relay, DNS Proxy, DDNS
VPN
PPTP/L2TP/IP Sec pass-through Pass through
Test
PING function and Trace Route function
VLAN
VLAN Support; Management VLAN
MANAGEMENT
NMS
CENTRALISED MANAGEMENT SYSTEM for Monitoring,Configuration and Software Upgrade
Management – Device
HTTP & HTTPS Web-based GUI, Telnet, SSH, SSH2 Management, button for factory reset, TR 069(Under development)
SNMP
SNMP V1 & V2, SNMP traps for RSSI / Signal Quality Degradation , Interference , Congestion , Packet Drop
Firmware Upgrade
Automated centralized Firmware Upgrade & WebGUI manual upgrade; Keep setting when Firmware Upgrade
LED indication
Power, Ethernet , Wireless
Security Functions
Tasteful Packet Inspection, Packet filtering, Denial Of Service protection, Management
Authentication
PAP, CHAP
ETHERNET INTERFACE
Ethernet Connectors
RJ-45 Jacks, 1 (or 4) Ports 10/100 Base-TX with Auto-MDIX (1 (or 4)-Ports PoE PD (Data+Power IN)
Standards
IEEE Std.802.2 10BASE-T 10Mbps,Half/Full Duplex;
IEEE Std.802.23u 100BASE-TX, 10/100Mbps, Half/Full Duplex ;< br /> IEEE Std.802.3x Flow control and Back-pressure.
IEEE Std.802.23u 100BASE-TX, 10/100Mbps, Half/Full Duplex ;< br /> IEEE Std.802.3x Flow control and Back-pressure.
Surge Protection
Protection against initial ESD/EFT Transient Suppression
Protocols
CSMA/CD
Technology
Store & Forward switching architecture
Network Cable
2-Pair UTP/STP Cat 5 24AWG Cable
LED’s
Link/Activity per Ethernet Port
Power Over Ethernet Injector: Power Supply(IN) for CPE.
Power over Ethernet 12V, 1A (12 Watts) on Spare pair to supply power to the CPE
No. of Ethernet Ports that can Power ON the CPE.
Anyone/All of the four LAN ports
Max Packet size supported
1536 bytes
Port Isolation
Using Port-based VLAN
Support Broadcast Storm control per port
Yes
RADIO
Number of Radio
TD-LTE Radio
Frequency Range
2300 - 2400 Mhz
Channel Bandwidth
Bandwidth 5MHz/10MHz/15MHz/20MHz Support
RF transmission power
23 dBm (Optional 27dBm)
Receiver Sensitivity
-94 dBm
MIMO capability
1 T x 2 R
ANTENNA
Internal Antenna gain
12 dBi, (Optional 8 dBi)
Internal Antenna3 dB Beamwidth
< 60 Degree
Internal Antenna Polarization
Horizontal/Vertical
External Antenna Connector
1 (Optional)
POWER
Power options
100-270 V 50/60 Hz, Indian PIN type
Powering through POE DC power
Powering through POE DC power
Power Method
Passive Power over Ethernet
Max Power Consumption
5 Watts
Power Supply
12V, 1A (12 Watts)
POE Injector Compliance
RHS
PHYSICAL
Physical Dimension/ Form factor
Table top with in-built antenna
Weight
< 600 g
Operating temperature
(0 to 50 deg cent) Outdoor Temperature
Humidity (Specify supported value)
5 to 95% Non Condensing
ENVIRONMENT PROTECTION
Compliance's
WEEE, EN 60950,CE mark, RoHS Directive 2002/95/EC Other market specific certification upon requests
Shock and Vibration
ETSI300-0110-1.4
Protection
Outdoor - Dust Protected , Protected from Spray Water up to 60 Degree from V , 50 cm Drop Test, Also available in IP 65 Enclosure
Enclosure Characteristics
Outdoor - UV Stabilized Plastic
